Standard Accessories |
| 1. Full splash guard |
| 2. Belt type spindle 10000 rpm BT40 |
| 3. Spindle motor 7.5/11 kw |
| 4. Arm type ATC 24 tools, BT40 |
| 5. Rigid tapping |
| 6. Cooling system |
| 7. Auto lubrication system |
| 8. Spindle oil cooler unit |
| 9. Heat exchanger |
| 10. Telescopic cover for 3 axes |
| 11. Work lamp |
| 12. Three-color call light |
| 13. Tool box |
| 14. Coolant gun |
| 15. Screw type chip conveyor with chip cart |
Optional Accessories |
| 1. Transformer |
| 2. CE Mark |
| 3. Spindle motor 11/15 kw |
| 4. Spindle motor 15/18.5 kw |
| 5. Arm type ATC 30 tools, BT40 |
| 6. Belt type spindle 12000 rpm, BT40 |
| 7. Direct drive spindle 10000/12000/15000 rpm |
| 8. Built-in type spindle 16000/20000/24000/36000 rpm |
| 9. Rear coolant flushing device |
| 10. Disk type oil skimmer |
| 11. Coolant through spindle (with sealed splash guard) |
| 12. Chain type chip conveyor with chip cart |
| 13. Roller type linear guideway |
| 14. 4th axis rotary table |
| 15. Gear box |
SWISS-TYPE Turning
JINN FA JSL-20RBY SWISS TYPE CNC
| Specifications | Item | Unit | JSL-20RB | JSL-20RBY | ||
| Main Spindle | Max. Turning Diameter | mm | 20 | 20 | ||
|---|---|---|---|---|---|---|
| Sub Spindle | Max. Turning Diameter | mm | 20 | 20 | ||
| Turning Length | Max. Turning Length (rotating bush) | mm | 250/190 | 250/190 | ||
| Max. Turning Length (non bush) | mm | Non/50 | Non/50 | |||
| Max. Turning Length (fixed bush) | mm | 280/220 | 280/220 | |||
| Main Spindle | Max. Drilling/Tapping Capacity | mm | Ø10/M8 | Ø10/M8 | ||
| Cross | Max. Cross Drilling/Tapping Capacity | mm | Ø8/M6 | Ø8/M6 | ||
| Tool Holder | OD Tool Holder | pcs | 6/□12mm | 6/□12mm | ||
| ID Tool Holder | pcs | 4/Ø22mm | 4/Ø22mm | |||
| S1 Cross Live Tool Holder | pcs | 5/ER-16 | 5/ER-16 | |||
| Sub Spindle | Face Tool Holder | pcs | 4 | 8 | ||
| Control | Axis (with C axis) | pcs | 7 | 8 | ||
| Main/Sub Spindle | Bore | mm | Ø26.6 | Ø26.6 | ||
| Main/Sub Spindle | Max. Speed | rpm | 10000/8000 | 10000/8000 | ||
| Axis | X1/Z1/Y1/X2/Z2/Y2 Rapid Traverse | m/min | 24 | 24 | ||
| S1 | Cross Drilling Max. Speed | rpm | 8000 | 8000 | ||
| S1 | Cross Driven Motor | kw | 1.2 | 1.2 | ||
| S2 | Face Driven Motor | kw | 0.5 | 0.75 | ||
| S2 | Face Drilling Max. Speed | rpm | 8000 | 8000 | ||
| Spindle Motor | Main Spindle Motor | kw | 2.2/3.7 | 2.2/3.7 | ||
| Sub Spindle Motor | kw | 2.2/3.7 | 2.2/3.7 | |||
| Axis Motor | X1/Z1/Y1 Motor | kw | 0.75 | 0.75 | ||
| X2/Z2 Motor | kw | 0.5 | 0.5 | |||
| Y2 Motor | kw | Non | 0.5 | |||
| Coolant | Pump | kw | 2.3 | 2.3 | ||
| Power | Requirements | kw | 20KVA | 20KVA | ||
| Lubrication | Capacity | L | 2 | 2 | ||
| Coolant Tank | Capacity | L | 220(100%) | 220(100%) | ||
| Machine | Dimensions (LxWxH) | mm | 2846x1284x2024 | 2846x1284x2024 | ||
| Machine | Weight | kg | 2670 | 2700 | ||
JINN FA JSL-42RBY SWISS TYPE CNC
| Specifications | Item | Unit | JSL-32RB | JSL-32RBY | JSL-42RB | JSL-42RBY | JSL-51RB | JSL-51RBY | ||||||
| Main spindle | Max. turning diameter of main spindle | mm | 32 | 32 | 42 | 42 | 51 | 51 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sub spindle | Max. turning diameter of sub-spindle | mm | 32 | 32 | 42 | 42 | 51 | 51 | ||||||
| Turning length | Max. turning length(rotating guide bushing) | mm | 300 | 300 | 300 | 300 | 300 | 300 | ||||||
| Max. turning length(non-guide bushing) | mm | 130 | 130 | 130 | 130 | 130 | 130 | |||||||
| Sub spindle | Max. drilling/tapping capacity | mm | Ø13 / M10 | Ø13 / M10 | Ø13 / M10 | Ø13 / M10 | Ø16 / M12 | Ø16 / M12 | ||||||
| Main spindle | Max. drilling/tapping capacity | mm | Ø10/M8 | Ø10/M8 | Ø10/M8 | Ø10/M8 | Ø26 / M16 | Ø26 / M16 | ||||||
| Cross | Max. cross drilling/tapping capacity | mm | Ø10 / M6 | Ø10 / M6 | Ø10 / M6 | Ø10 / M6 | Ø12 / M10 | Ø12 / M10 | ||||||
| Tool | O.D. tool holder | pcs | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | ||||||
| Tool | I.D. tool holder | pcs | 5 / Ø25mm | 5 / Ø25mm | 5 / Ø25mm | 5 / Ø25mm | 5 / Ø25mm | 5 / Ø25mm | ||||||
| Tool | S1 cross live tool holder | pcs | 6 (ER-20) | 6 (ER-20) | 6 (ER-20) | 6 (ER-20) | 6 (ER-20) | 6 (ER-20) | ||||||
| Sub spindle | Face drills of sub-spindle | pcs | 4 | 8 | 4 | 8 | 4 | 8 | ||||||
| Control | Controlled axes (Incl. C-axis) | pcs | 7 | 8 | 7 | 8 | 7 | 8 | ||||||
| Main/Sub | Main/sub-spindle bore | mm | Ø34 | Ø34 | Ø44 | Ø44 | Ø52 | Ø52 | ||||||
| Main/Sub | Max. speed of main/sub-spindle | rpm | 7000 | 7000 | 6000 | 6000 | 4500 | 4500 | ||||||
| Axis | X1/Z1/Y1/X2/Z2/Y2 axis rapid traverse | m/min | 24 | 24 | 24 | 24 | 24 | 24 | ||||||
| S1 | Max. speed of S1 cross drilling | rpm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | ||||||
| S1 | S1cross tooling drive motor | KW | 1.6 | 1.6 | 1.6 | 1.6 | 2.5 | 2.5 | ||||||
| S2 | S2 face tooling drive motor | KW | 0.75 | 0.75 | 0.75 | 0.75 | 2.5 | 2.5 | ||||||
| S2 | Max. speed of S2 drill | rpm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | ||||||
| Main | Main spindle motor | KW | 5.5 / 7.5 | 5.5 / 7.5 | 5.5 / 7.5 | 5.5 / 7.5 | 11 | 15 | ||||||
| Sub | Sub spindle motor | KW | 5.5 / 7.5 | 5.5 / 7.5 | 5.5 / 7.5 | 5.5 / 7.5 | 7.5 | 11 | ||||||
| Axis | X1/Z1 axis motor | KW | 1.4 | 1.4 | 1.4 | 1.4 | 2.5 | 2.5 | ||||||
| Axis | Y1/X2/Z2 axis motor | KW | 0.75 | 0.75 | 0.75 | 0.75 | 2.5 | 2.5 | ||||||
| Axis | Y2 axis motor | KW | non | 0.75 | non | 0.75 | non | 0.75 | ||||||
| Coolant | Coolant pump motor | KW | 1.29 | 1.29 | 1.29 | 1.29 | 0.54 | 0.54 | ||||||
| Power | Power required | KVA | 30 | 30 | 30 | 30 | 30 | 30 | ||||||
| Lubrication | Lubrication oil capacity | L | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| Coolant | Coolant tank capacity | L | 250(100%) | 250(100%) | 250(100%) | 250(100%) | 250(100%) | 250(100%) | ||||||
| Machine | Machine dimensions(L x W x H) | mm | 3173x1695x2146 | 3173x1695x2146 | 3173x1695x2146 | 3173x1695x2146 | 3173x1695x2146 | 3173x1695x2146 | ||||||
| Machine | Weight | KG | 4900 | 4920 | 4900 | 4920 | 5450 | 5480 | ||||||
Standard Accessories |
| 1. Full splash guard |
| 2. Belt type spindle 10000 rpm BT40 |
| 3. Spindle motor 7.5/11 kw |
| 4. Arm type ATC 24 tools, BT40 |
| 5. Rigid tapping |
| 6. Cooling system |
| 7. Auto lubrication system |
| 8. Spindle oil cooler unit |
| 9. Heat exchanger |
| 10. Telescopic cover for 3 axes |
| 11. Work lamp |
| 12. Three-color call light |
| 13. Tool box |
| 14. Coolant gun |
| 15. Screw type chip conveyor with chip cart |
Optional Accessories |
| 1. Transformer |
| 2. CE Mark |
| 3. Spindle motor 11/15 kw |
| 4. Spindle motor 15/18.5 kw |
| 5. Arm type ATC 30 tools, BT40 |
| 6. Belt type spindle 12000 rpm, BT40 |
| 7. Direct drive spindle 10000/12000/15000 rpm |
| 8. Built-in type spindle 16000/20000/24000/36000 rpm |
| 9. Rear coolant flushing device |
| 10. Disk type oil skimmer |
| 11. Coolant through spindle (with sealed splash guard) |
| 12. Chain type chip conveyor with chip cart |
| 13. Roller type linear guideway |
| 14. 4th axis rotary table |
| 15. Gear box |

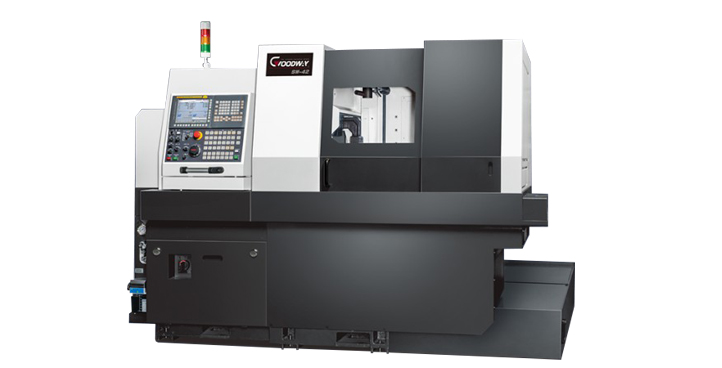

GOODWAY SW-32 SWISS TURNING CENTER
| CAPACITY | SW-42 | ||
|---|---|---|---|
| Working range | Max. machining diameter | Ø42 | |
| Max. turning length per chuck (mm) | 180 / 110 (bush / bushless) | ||
| O.D. tools | Number of tools | 5 | 6 |
| Shank size (mm) | □20 | □20 × 1 / □16 × 5 | |
| I.D. tools | Number of tools | 5 | |
| Sleeve size | ER20 | ||
| Cross live tools | Number of tools | 4 ~ 10 | |
| Max. spindle speed (rpm) | 6,000 | ||
| Spindle | Max. spindle speed (rpm) | 6,000 | |
| Motor output (cont.) kW | 5.5 | ||
| Motor output (30 min.) kW | 7.5 | ||
| BACKWORKING TOOLING SYSTEM | |||
| Back processing capacity | Max. chucking diameter (mm) | Ø42 | |
| Max. length for front ejection (mm) | 110 | ||
| Rear-end tools | Number of tools | 4 | |
| Max. spindle speed (rpm) | 5,000 | ||
| Sub-spindle | Max. spindle speed (rpm) | 6,000 | |
| Motor output (cont.) kW | 3.7 | ||
| Motor output (30 min.) kW | 5.5 | ||
| Preferred Equipment | |
|---|---|
| Preferred equipment of leading European watch manufacturers. | |
| Optimal Production | |
| Optimal production solution for small and medium-diameter workpieces. | |

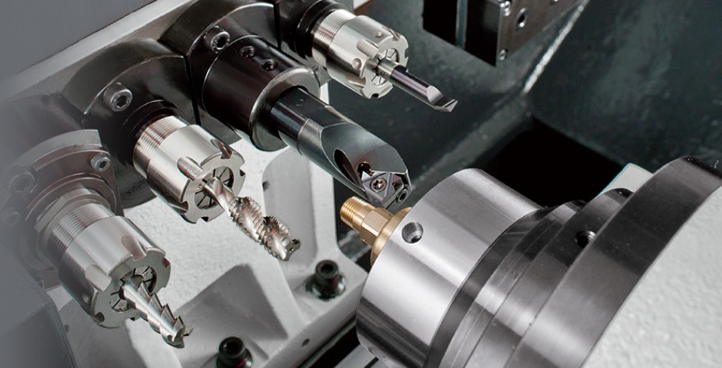

| Flexible Tooling System | |
| The complete tooling system enables turning, milling, drilling, and tapping on the front, side, and rear in a single setup. | |
| Various live tooling holders such as hobbing, slotting, and thread whirling can be installed as needed. | |
| Comprehensive Machining Capability | |
| The hybrid guide bushing design allows switching between guide bush and bushless bushing modes based on production needs. | |
| The clamping mechanism uses rotary hydraulic cylinder drive design, providing ample clamping force to meet the demands of heavy cutting. | |
| Control Functions | |
| Standard “Air Bag” function to prevent significant cost losses in case of accidental collisions. | |
| Optional “OCR Oscillation Cutting” function effectively prevents chip entanglement and improves machine utilization. |
| Optional Features | |
|---|---|
| Coolant through tool | |
| Coolant through sub-spindle | |
| Hobbing | |
| Manual handle retrace | |
| Chip conveyor | |
| Electrical cabinet A/C cooling system | |
| Oil mist collector | |
| High pressure coolant system |
