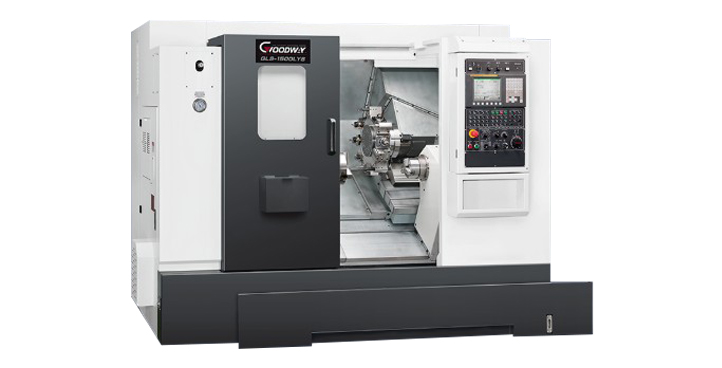

GOODWAY GLS-2000L CNC LATHE
GOODWAY GLS-2000L CNC LATHE
| GLS-1500 / L | GLS-2000 / L | |
|---|---|---|
| CAPACITY | ||
| Max. swing diameter (mm) | Γ560 | |
| Max. turning diameter (mm) | Γ390 | |
| Max. turning length (mm) | 330 / 630 | |
| Chuck size | 6" (Big-bore) | 8" (Big-bore) |
| Bar capacity (mm) | Γ51 | Γ65 |
| SPINDLE | ||
| Spindle motor output kW (cont.) | 11 | |
| Spindle motor output kW (30 min.) | 15 | |
| Max. spindle speed (rpm) | 6,000 | 4,500 |
| X & Z AXES (opt.) | ||
| Max. X-axis travel (mm) | 230 | |
| Max. Z-axis travel (mm) | 330 / 630 | |
| TURRET | ||
| Stations | 12 / 10 | |
| LIVE TOOLING TURRET (opt.) | ||
| Stations | 12 / 24 | |
| Live tooling shank size | ER25 | |
| Live tooling rpm range (rpm) | 4,000 | |
| Y-AXIS (opt.) | ||
| Max. turning diameter (mm) | Γ310 | |
| Max. Y-axis travel (mm) | 105 (Β±52.5) | |
| TAILSTOCK (opt.) | ||
| Quill center taper | MT#4 (live center) | |
| Tailstock base travel (mm) | 300 / 500 | |
| SUB-SPINDLE (opt.) | ||
| Max. spindle speed (rpm) | 6,000 | |
| Spindle motor output kW (cont.) | 3.7 | |
| Spindle motor output kW (5 min.) | 5.5 | |
| FEATURES | |
|---|---|
| High-performance slant-bed with linear guideways, occupying only about 4.5 mΒ² of floor space. | |
| Comprehensive turning and milling capabilities with a live tooling turret, Y-axis, and sub-spindle. | |
| HIGH RIGIDITY STRUCTURE | |
| The low center of gravity 30Β° slant bed design ensures maximum structural rigidity. | |
| High precision linear guide way design is used in X and Z axes to provide optimum control and efficient movement. | |
| THE ULTIMATE MACHINING POWER | |
| Two-speed motor-driven spindle meets both heavy cutting and precision machining requirements. | |
| Versatile configurations with options for 10 / 12 / 24-station turret or gang type tool holders. | |
| USER-FRIENDLY OPERATION | |
| High-efficiency programmable tailstock / High thrust servo tailstock. | |
| Tailstock can be equipped with MT#4 live center or deep hole drilling tool. | |
| INTEGRATED MACHINING | |
| Optional 12 / 24-station live tooling turret with live tool speed up to 4,000 rpm. | |
| Sub-spindle equipped with 5" chuck and driven by a built-in type motor, reaching a maximum speed of 6,000 rpm. | |
| Y-axis control with Β±52.5 mm travel enables machining of complex workpieces. |
| ACCESSORIES | |
|---|---|
| 3-jaw chuck with one set of soft jaws | |
| Collet chuck | |
| Special work holding chuck | |
| Led florescent work light | |
| External work light | |
| Tri-color operation status light tower | |
| Tool presetter | |
| Parts catcher | |
| Chip conveyor | |
| Electrical cabinet A/C cooling system | |
| Electrical cabinet heat exchanger | |
| High pressure coolant system | |
| Oil skimmer | |
| Load monitor |
