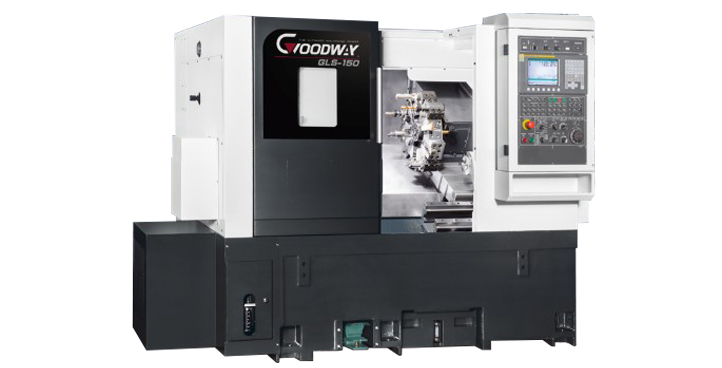

GOODWAY GLS-200 CNC LATHE
GOODWAY GLS-200 CNC LATHE
| GLS-150 | GLS-200 | |
|---|---|---|
| CAPACITY | ||
| Max. swing diameter (mm) | Γ500 | |
| Max. turning diameter (mm) | Γ360 / 280*1 | |
| Max. turning length (mm) | 500 | |
| Chuck size | 6" | 8" |
| Bar capacity (mm) | Γ51 | Γ65 |
| SPINDLE | ||
| Spindle motor output kW (cont.) | 11 (15 HP) | |
| Spindle motor output kW (30 min.) | 15 (20 HP) | |
| Max. spindle speed (rpm) | 6,000 | 4,500 |
| X & Z AXES | ||
| Max. X-axis travel (mm) | 210 | |
| Max. Z-axis travel (mm) | 520 | |
| TURRET | ||
| Stations | 12 / 10 | |
| LIVE TOOLING TURRET (opt.) | ||
| Stations | 12 | |
| Live tooling shank size | ER25 | |
| Live tooling rpm range (rpm) | 10 ~ 4,000 | |
| TAILSTOCK (opt.) | ||
| Quill center taper | MT#4 (live center) | |
| Quill diameter (mm) | Γ70 | |
| Quill travel (mm) | 150 | |
| Tailstock base travel (mm) | 290 | |
| *1: For M (Live-tooling turret) models only | ||
| FEATURES | |
|---|---|
| High efficiency and reliability with a footprint of only approximately 4.6 mΒ². | |
| Live tooling turret and C-axis control functions are available as optional features. | |
| HIGH RIGIDITY STRUCTURE | |
| The low center of gravity 30Β° slant bed design ensures maximum structural rigidity. | |
| High precision linear guide way design is used in X and Z axes to provide the optimum control and efficient movement. | |
| THE ULTIMATE MACHINING POWER | |
| Two-speed motor-driven spindle meets both heavy cutting and precision machining requirements. | |
| High-efficiency 12-station servo indexing turret design; opposing tool change takes only 0.5 seconds. | |
| USER-FRIENDLY OPERATION | |
| High-efficiency programmable tailstock. | |
| The tailstock can be equipped with an MT#4 live center. | |
| INTEGRATED MACHINING | |

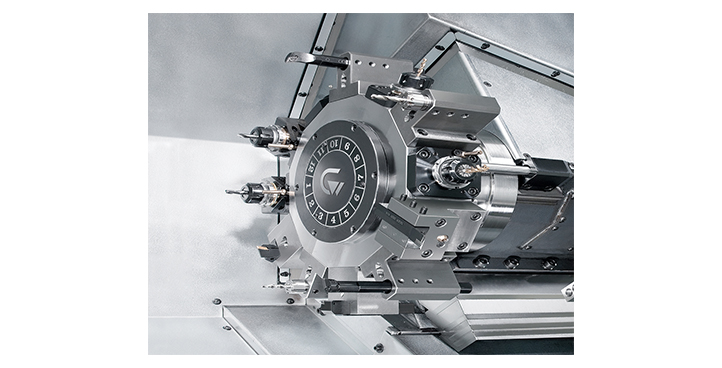

| Optional 12-station live tooling turret is available, with a maximum live tooling speed of up to 4,000 rpm. | |
| The live tooling turret, combined with GOODWAY live tool holders, delivers exceptional milling performance. |
| ACCESSORIES | |
|---|---|
| 3-jaw chuck with one set of soft jaws | |
| Collet chuck | |
| Special work holding chuck | |
| Led florescent work light | |
| External work light | |
| Tri-color operation status light tower | |
| Tool presetter | |
| Parts catcher | |
| Chip conveyor | |
| Electrical cabinet A/C cooling system | |
| Oil skimmer | |
| Oil mist collector | |
| Electrical cabinet heat exchanger | |
| High pressure coolant system | |
| Load monitor |
