Standard Accessories |
| 1. Full splash guard |
| 2. Belt type spindle 10000 rpm BT40 |
| 3. Spindle motor 7.5/11 kw |
| 4. Arm type ATC 24 tools, BT40 |
| 5. Rigid tapping |
| 6. Cooling system |
| 7. Auto lubrication system |
| 8. Spindle oil cooler unit |
| 9. Heat exchanger |
| 10. Telescopic cover for 3 axes |
| 11. Work lamp |
| 12. Three-color call light |
| 13. Tool box |
| 14. Coolant gun |
| 15. Screw type chip conveyor with chip cart |
Optional Accessories |
| 1. Transformer |
| 2. CE Mark |
| 3. Spindle motor 11/15 kw |
| 4. Spindle motor 15/18.5 kw |
| 5. Arm type ATC 30 tools, BT40 |
| 6. Belt type spindle 12000 rpm, BT40 |
| 7. Direct drive spindle 10000/12000/15000 rpm |
| 8. Built-in type spindle 16000/20000/24000/36000 rpm |
| 9. Rear coolant flushing device |
| 10. Disk type oil skimmer |
| 11. Coolant through spindle (with sealed splash guard) |
| 12. Chain type chip conveyor with chip cart |
| 13. Roller type linear guideway |
| 14. 4th axis rotary table |
| 15. Gear box |
CNC MILLING

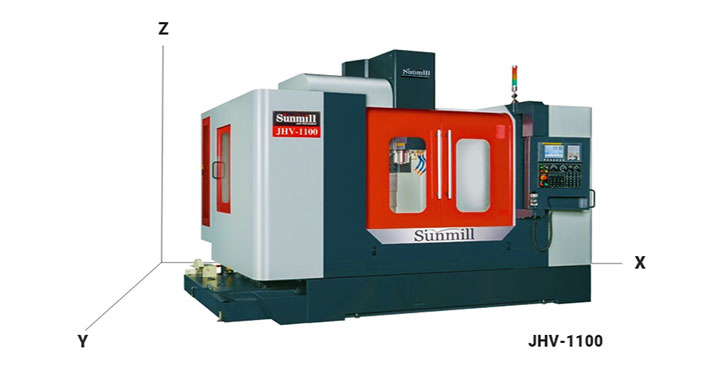

4-Axis SUNMILL JHV-1200 Vertical Machining Center

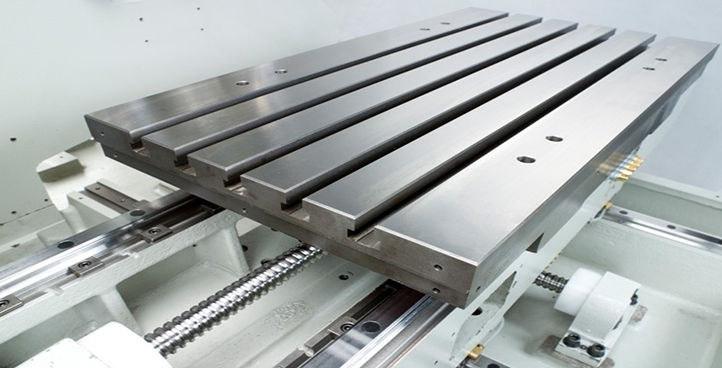

| Contents | Items | Units | JHV-1100 | JHV-1200 | ||
| 3- Axes travel | X axis travel | mm | 1100 | 1200 | ||
|---|---|---|---|---|---|---|
| Y axis travel | mm | 650 | 650 | |||
| Z axis travel | mm | 610 | 810(BT40) opt. | 720(BT50) opt. | ||
| Distance from spindle nose to table surface |
mm | 120-730 | 120-930 | 150-870 | ||
| Table | Table area | mm | 1250 x 630 | 1350 x 630 | ||
| Max. load of table | kgs | 800 | 800 | |||
| T- slot | mm | 5 x 18 x 100 | 5 x 18 x 100 | |||
| Spindle | Spindle taper | type | BT-40 (BT-50 opt.) | BT-40 (BT-50 opt.) | ||
| Belt type | rpm | 10000 | 10000 | |||
| Direct drive - opt. | rpm | 10000 / 12000 / 15000 | 10000 / 12000 / 15000 | |||
| Spindle motor | kw | 7.5 / 11 | 7.5 / 11 | |||
| Spindle cooling | type | oil cooler | oil cooler | |||
| Feed Rate | Rapid traverse (X,Y,Z) | m/min | 30 / 30 / 24 | 30 / 30 / 24 | ||
| Cutting feed rate | mm/min | 1-15000 | 1-15000 | |||
| X,Y,Z axis servo motor (FANUC) | kw | 3 / 3 / 3 | 3 / 3 / 3 | |||
| X,Y,Z axis servo motor (MITSUBISHI) | kw | 3.5 / 3.5 / 3.5 | 3.5 / 3.5 / 3.5 | |||
| A.T.C | Magazine type | type | Arm | Arm | ||
| Tool magazine capacity | pcs | 24 | 24 | |||
| Max. tool diameter | mm | 75 / 150 | 75 / 150 | |||
| Max. tool length | mm | 250 | 250 | |||
| Max. tool weight | kgs | 7 | 7 | |||
| Tool selection | type | Random | Random | |||
| Others | Power consumption | KVA | 20 | 20 | ||
| Floor space (L x W x H) | mm | 3750 x 2600 x 2950 | 3750 x 2600 x 2950 | |||
| Machine weight | kgs | 7300 | 7800 | |||
| *Design and specifications are subject to change without prior notice. | ||||||

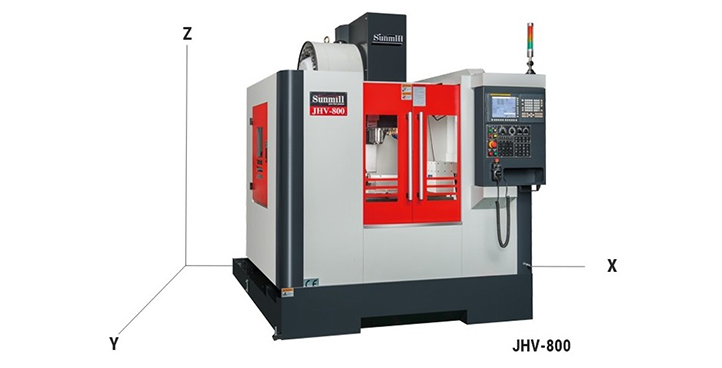

4-Axis SUNMILL JHV-800 Vertical Machining Center
| Contents | Items | Units | JHV-800 | |
| 3- Axes travel | X axis travel | mm | 800 | |
|---|---|---|---|---|
| Y axis travel | mm | 500 | ||
| Z axis travel | mm | 580 | ||
| Distance from spindle nose to table surface |
mm | 120-700 | ||
| Table | Table area | mm | 900 x 500 | |
| Max. load of table | kgs | 500 | ||
| T- slot | mm | 5 x 18 x 100 | ||
| Spindle | Spindle taper | type | BT-40 | |
| Belt type | rpm | 10000 | ||
| Direct drive - opt. | rpm | 10000 / 12000 / 15000 | ||
| Spindle motor | kw | 5.5 / 7.5 | ||
| Spindle cooling | type | oil cooler | ||
| Feed Rate | Rapid traverse (X,Y,Z) | m/min | 30 / 30 / 24 | |
| Cutting feed rate | mm/min | 1-15000 | ||
| X,Y,Z axis servo motor (FANUC) | kw | 1.2 / 1.8 / 3.0 | ||
| X,Y,Z axis servo motor (MITSUBISHI) | kw | 1.5 / 1.5 / 2 | ||
| A.T.C | Magazine type | type | Arm | |
| Tool magazine capacity | pcs | 24 | ||
| Max. tool diameter | mm | 75 / 150 | ||
| Max. tool length | mm | 250 | ||
| Max. tool weight | kgs | 7 | ||
| Tool selection | type | Random | ||
| Others | Power consumption | KVA | 20 | |
| Floor space (L x W x H) | mm | 2450 x 2570 x 2800 | ||
| Machine weight | kgs | 4500 | ||
| *Design and specifications are subject to change without prior notice. | ||||
Standard Accessories |
| 1. Full splash guard |
| 2. Belt type spindle 10000 rpm BT40 |
| 3. Spindle motor 5.5/7.5 kw |
| 4. Arm type ATC 24 tools, BT40 |
| 5. Rigid tapping |
| 6. Cooling system |
| 7. Auto lubrication system |
| 8. Spindle oil cooler unit |
| 9. Heat exchanger |
| 10. Telescopic cover for 3 axes |
| 11. Work lamp |
| 12. Three-color call light |
| 13. Tool box |
| 14. Coolant gun |
| 15. Screw type chip conveyor with chip cart |
Optional Accessories |
| 1. Transformer |
| 2. CE Mark |
| 3. Spindle motor 7.5/11 kw |
| 4. Armless type ATC 20 tools, BT40 |
| 5. Belt type spindle 12000 rpm, BT40 |
| 6. Direct drive spindle 10000/12000/15000 rpm |
| 7. Built-in type spindle 24000/30000/36000 rpm |
| 8. Rear coolant flushing device |
| 9. Disk type oil skimmer |
| 10. Coolant through spindle (with sealed splash guard) |
| 11. Chain type chip conveyor with chip cart |
| 12. Roller type linear guideway |
4-Axis MILCO AM-1000 MACHINING CENTER
| Contents | Items | Units | JHV-1100 | JHV-1200 | ||
| 3- Axes travel | X axis travel | mm | 1100 | 1200 | ||
|---|---|---|---|---|---|---|
| Y axis travel | mm | 650 | 650 | |||
| Z axis travel | mm | 610 | 810(BT40) opt. | 720(BT50) opt. | ||
| Distance from spindle nose to table surface |
mm | 120-730 | 120-930 | 150-870 | ||
| Table | Table area | mm | 1250 x 630 | 1350 x 630 | ||
| Max. load of table | kgs | 800 | 800 | |||
| T- slot | mm | 5 x 18 x 100 | 5 x 18 x 100 | |||
| Spindle | Spindle taper | type | BT-40 (BT-50 opt.) | BT-40 (BT-50 opt.) | ||
| Belt type | rpm | 10000 | 10000 | |||
| Direct drive - opt. | rpm | 10000 / 12000 / 15000 | 10000 / 12000 / 15000 | |||
| Spindle motor | kw | 7.5 / 11 | 7.5 / 11 | |||
| Spindle cooling | type | oil cooler | oil cooler | |||
| Feed Rate | Rapid traverse (X,Y,Z) | m/min | 30 / 30 / 24 | 30 / 30 / 24 | ||
| Cutting feed rate | mm/min | 1-15000 | 1-15000 | |||
| X,Y,Z axis servo motor (FANUC) | kw | 3 / 3 / 3 | 3 / 3 / 3 | |||
| X,Y,Z axis servo motor (MITSUBISHI) | kw | 3.5 / 3.5 / 3.5 | 3.5 / 3.5 / 3.5 | |||
| A.T.C | Magazine type | type | Arm | Arm | ||
| Tool magazine capacity | pcs | 24 | 24 | |||
| Max. tool diameter | mm | 75 / 150 | 75 / 150 | |||
| Max. tool length | mm | 250 | 250 | |||
| Max. tool weight | kgs | 7 | 7 | |||
| Tool selection | type | Random | Random | |||
| Others | Power consumption | KVA | 20 | 20 | ||
| Floor space (L x W x H) | mm | 3750 x 2600 x 2950 | 3750 x 2600 x 2950 | |||
| Machine weight | kgs | 7300 | 7800 | |||
| *Design and specifications are subject to change without prior notice. | ||||||
Standard Accessories |
| 1. Full splash guard |
| 2. Belt type spindle 10000 rpm BT40 |
| 3. Spindle motor 7.5/11 kw |
| 4. Arm type ATC 24 tools, BT40 |
| 5. Rigid tapping |
| 6. Cooling system |
| 7. Auto lubrication system |
| 8. Spindle oil cooler unit |
| 9. Heat exchanger |
| 10. Telescopic cover for 3 axes |
| 11. Work lamp |
| 12. Three-color call light |
| 13. Tool box |
| 14. Coolant gun |
| 15. Screw type chip conveyor with chip cart |
Optional Accessories |
| 1. Transformer |
| 2. CE Mark |
| 3. Spindle motor 11/15 kw |
| 4. Spindle motor 15/18.5 kw |
| 5. Arm type ATC 30 tools, BT40 |
| 6. Belt type spindle 12000 rpm, BT40 |
| 7. Direct drive spindle 10000/12000/15000 rpm |
| 8. Built-in type spindle 16000/20000/24000/36000 rpm |
| 9. Rear coolant flushing device |
| 10. Disk type oil skimmer |
| 11. Coolant through spindle (with sealed splash guard) |
| 12. Chain type chip conveyor with chip cart |
| 13. Roller type linear guideway |
| 14. 4th axis rotary table |
| 15. Gear box |

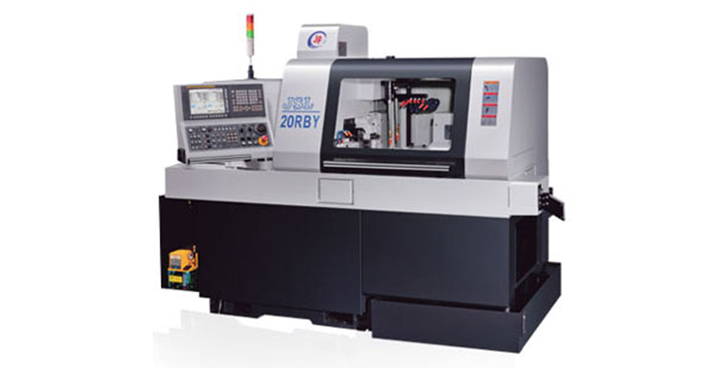

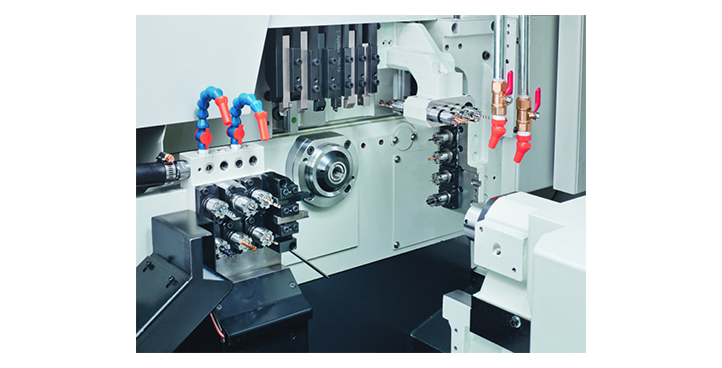

JINN FA JSL-20RBY SWISS TYPE CNC
| Specifications | Item | Unit | JSL-20RB | JSL-20RBY | ||
| Main Spindle | Max. Turning Diameter | mm | 20 | 20 | ||
|---|---|---|---|---|---|---|
| Sub Spindle | Max. Turning Diameter | mm | 20 | 20 | ||
| Turning Length | Max. Turning Length (rotating bush) | mm | 250/190 | 250/190 | ||
| Max. Turning Length (non bush) | mm | Non/50 | Non/50 | |||
| Max. Turning Length (fixed bush) | mm | 280/220 | 280/220 | |||
| Main Spindle | Max. Drilling/Tapping Capacity | mm | Ø10/M8 | Ø10/M8 | ||
| Cross | Max. Cross Drilling/Tapping Capacity | mm | Ø8/M6 | Ø8/M6 | ||
| Tool Holder | OD Tool Holder | pcs | 6/□12mm | 6/□12mm | ||
| ID Tool Holder | pcs | 4/Ø22mm | 4/Ø22mm | |||
| S1 Cross Live Tool Holder | pcs | 5/ER-16 | 5/ER-16 | |||
| Sub Spindle | Face Tool Holder | pcs | 4 | 8 | ||
| Control | Axis (with C axis) | pcs | 7 | 8 | ||
| Main/Sub Spindle | Bore | mm | Ø26.6 | Ø26.6 | ||
| Main/Sub Spindle | Max. Speed | rpm | 10000/8000 | 10000/8000 | ||
| Axis | X1/Z1/Y1/X2/Z2/Y2 Rapid Traverse | m/min | 24 | 24 | ||
| S1 | Cross Drilling Max. Speed | rpm | 8000 | 8000 | ||
| S1 | Cross Driven Motor | kw | 1.2 | 1.2 | ||
| S2 | Face Driven Motor | kw | 0.5 | 0.75 | ||
| S2 | Face Drilling Max. Speed | rpm | 8000 | 8000 | ||
| Spindle Motor | Main Spindle Motor | kw | 2.2/3.7 | 2.2/3.7 | ||
| Sub Spindle Motor | kw | 2.2/3.7 | 2.2/3.7 | |||
| Axis Motor | X1/Z1/Y1 Motor | kw | 0.75 | 0.75 | ||
| X2/Z2 Motor | kw | 0.5 | 0.5 | |||
| Y2 Motor | kw | Non | 0.5 | |||
| Coolant | Pump | kw | 2.3 | 2.3 | ||
| Power | Requirements | kw | 20KVA | 20KVA | ||
| Lubrication | Capacity | L | 2 | 2 | ||
| Coolant Tank | Capacity | L | 220(100%) | 220(100%) | ||
| Machine | Dimensions (LxWxH) | mm | 2846x1284x2024 | 2846x1284x2024 | ||
| Machine | Weight | kg | 2670 | 2700 | ||
Standard Accessories |
| 1. Full splash guard |
| 2. Belt type spindle 10000 rpm BT40 |
| 3. Spindle motor 7.5/11 kw |
| 4. Arm type ATC 24 tools, BT40 |
| 5. Rigid tapping |
| 6. Cooling system |
| 7. Auto lubrication system |
| 8. Spindle oil cooler unit |
| 9. Heat exchanger |
| 10. Telescopic cover for 3 axes |
| 11. Work lamp |
| 12. Three-color call light |
| 13. Tool box |
| 14. Coolant gun |
| 15. Screw type chip conveyor with chip cart |
Optional Accessories |
| 1. Transformer |
| 2. CE Mark |
| 3. Spindle motor 11/15 kw |
| 4. Spindle motor 15/18.5 kw |
| 5. Arm type ATC 30 tools, BT40 |
| 6. Belt type spindle 12000 rpm, BT40 |
| 7. Direct drive spindle 10000/12000/15000 rpm |
| 8. Built-in type spindle 16000/20000/24000/36000 rpm |
| 9. Rear coolant flushing device |
| 10. Disk type oil skimmer |
| 11. Coolant through spindle (with sealed splash guard) |
| 12. Chain type chip conveyor with chip cart |
| 13. Roller type linear guideway |
| 14. 4th axis rotary table |
| 15. Gear box |

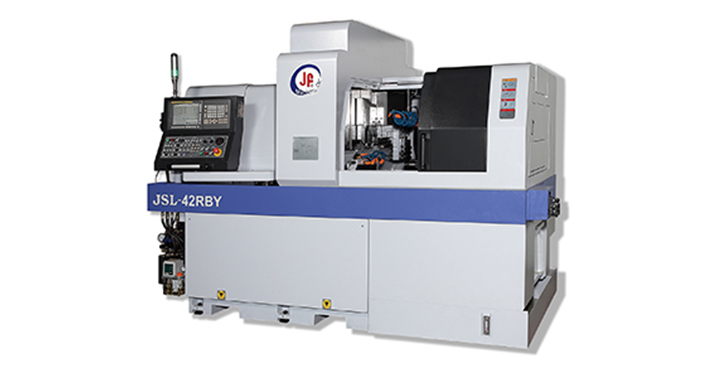

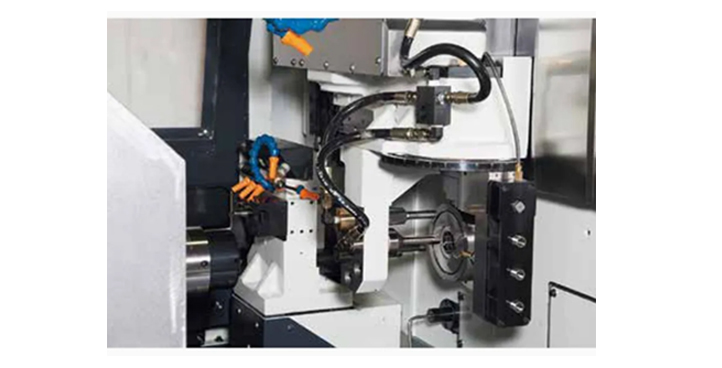

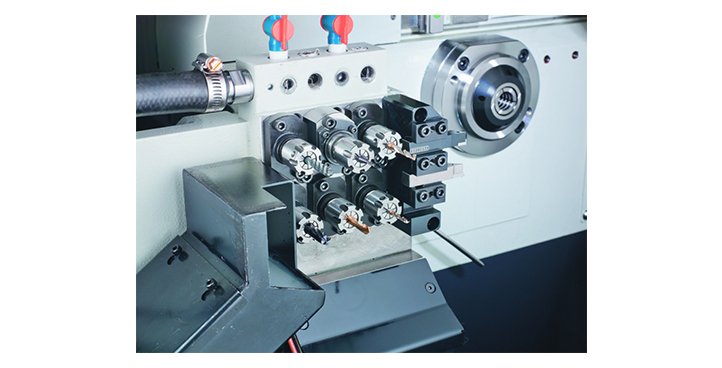

JINN FA JSL-42RBY SWISS TYPE CNC
| Specifications | Item | Unit | JSL-32RB | JSL-32RBY | JSL-42RB | JSL-42RBY | JSL-51RB | JSL-51RBY | ||||||
| Main spindle | Max. turning diameter of main spindle | mm | 32 | 32 | 42 | 42 | 51 | 51 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sub spindle | Max. turning diameter of sub-spindle | mm | 32 | 32 | 42 | 42 | 51 | 51 | ||||||
| Turning length | Max. turning length(rotating guide bushing) | mm | 300 | 300 | 300 | 300 | 300 | 300 | ||||||
| Max. turning length(non-guide bushing) | mm | 130 | 130 | 130 | 130 | 130 | 130 | |||||||
| Sub spindle | Max. drilling/tapping capacity | mm | Ø13 / M10 | Ø13 / M10 | Ø13 / M10 | Ø13 / M10 | Ø16 / M12 | Ø16 / M12 | ||||||
| Main spindle | Max. drilling/tapping capacity | mm | Ø10/M8 | Ø10/M8 | Ø10/M8 | Ø10/M8 | Ø26 / M16 | Ø26 / M16 | ||||||
| Cross | Max. cross drilling/tapping capacity | mm | Ø10 / M6 | Ø10 / M6 | Ø10 / M6 | Ø10 / M6 | Ø12 / M10 | Ø12 / M10 | ||||||
| Tool | O.D. tool holder | pcs | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | 6 (∅16mm) / 5 (∅20mm) | ||||||
| Tool | I.D. tool holder | pcs | 5 / Ø25mm | 5 / Ø25mm | 5 / Ø25mm | 5 / Ø25mm | 5 / Ø25mm | 5 / Ø25mm | ||||||
| Tool | S1 cross live tool holder | pcs | 6 (ER-20) | 6 (ER-20) | 6 (ER-20) | 6 (ER-20) | 6 (ER-20) | 6 (ER-20) | ||||||
| Sub spindle | Face drills of sub-spindle | pcs | 4 | 8 | 4 | 8 | 4 | 8 | ||||||
| Control | Controlled axes (Incl. C-axis) | pcs | 7 | 8 | 7 | 8 | 7 | 8 | ||||||
| Main/Sub | Main/sub-spindle bore | mm | Ø34 | Ø34 | Ø44 | Ø44 | Ø52 | Ø52 | ||||||
| Main/Sub | Max. speed of main/sub-spindle | rpm | 7000 | 7000 | 6000 | 6000 | 4500 | 4500 | ||||||
| Axis | X1/Z1/Y1/X2/Z2/Y2 axis rapid traverse | m/min | 24 | 24 | 24 | 24 | 24 | 24 | ||||||
| S1 | Max. speed of S1 cross drilling | rpm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | ||||||
| S1 | S1cross tooling drive motor | KW | 1.6 | 1.6 | 1.6 | 1.6 | 2.5 | 2.5 | ||||||
| S2 | S2 face tooling drive motor | KW | 0.75 | 0.75 | 0.75 | 0.75 | 2.5 | 2.5 | ||||||
| S2 | Max. speed of S2 drill | rpm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | ||||||
| Main | Main spindle motor | KW | 5.5 / 7.5 | 5.5 / 7.5 | 5.5 / 7.5 | 5.5 / 7.5 | 11 | 15 | ||||||
| Sub | Sub spindle motor | KW | 5.5 / 7.5 | 5.5 / 7.5 | 5.5 / 7.5 | 5.5 / 7.5 | 7.5 | 11 | ||||||
| Axis | X1/Z1 axis motor | KW | 1.4 | 1.4 | 1.4 | 1.4 | 2.5 | 2.5 | ||||||
| Axis | Y1/X2/Z2 axis motor | KW | 0.75 | 0.75 | 0.75 | 0.75 | 2.5 | 2.5 | ||||||
| Axis | Y2 axis motor | KW | non | 0.75 | non | 0.75 | non | 0.75 | ||||||
| Coolant | Coolant pump motor | KW | 1.29 | 1.29 | 1.29 | 1.29 | 0.54 | 0.54 | ||||||
| Power | Power required | KVA | 30 | 30 | 30 | 30 | 30 | 30 | ||||||
| Lubrication | Lubrication oil capacity | L | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| Coolant | Coolant tank capacity | L | 250(100%) | 250(100%) | 250(100%) | 250(100%) | 250(100%) | 250(100%) | ||||||
| Machine | Machine dimensions(L x W x H) | mm | 3173x1695x2146 | 3173x1695x2146 | 3173x1695x2146 | 3173x1695x2146 | 3173x1695x2146 | 3173x1695x2146 | ||||||
| Machine | Weight | KG | 4900 | 4920 | 4900 | 4920 | 5450 | 5480 | ||||||
Standard Accessories |
| 1. Full splash guard |
| 2. Belt type spindle 10000 rpm BT40 |
| 3. Spindle motor 7.5/11 kw |
| 4. Arm type ATC 24 tools, BT40 |
| 5. Rigid tapping |
| 6. Cooling system |
| 7. Auto lubrication system |
| 8. Spindle oil cooler unit |
| 9. Heat exchanger |
| 10. Telescopic cover for 3 axes |
| 11. Work lamp |
| 12. Three-color call light |
| 13. Tool box |
| 14. Coolant gun |
| 15. Screw type chip conveyor with chip cart |
Optional Accessories |
| 1. Transformer |
| 2. CE Mark |
| 3. Spindle motor 11/15 kw |
| 4. Spindle motor 15/18.5 kw |
| 5. Arm type ATC 30 tools, BT40 |
| 6. Belt type spindle 12000 rpm, BT40 |
| 7. Direct drive spindle 10000/12000/15000 rpm |
| 8. Built-in type spindle 16000/20000/24000/36000 rpm |
| 9. Rear coolant flushing device |
| 10. Disk type oil skimmer |
| 11. Coolant through spindle (with sealed splash guard) |
| 12. Chain type chip conveyor with chip cart |
| 13. Roller type linear guideway |
| 14. 4th axis rotary table |
| 15. Gear box |
